ID # 39030052

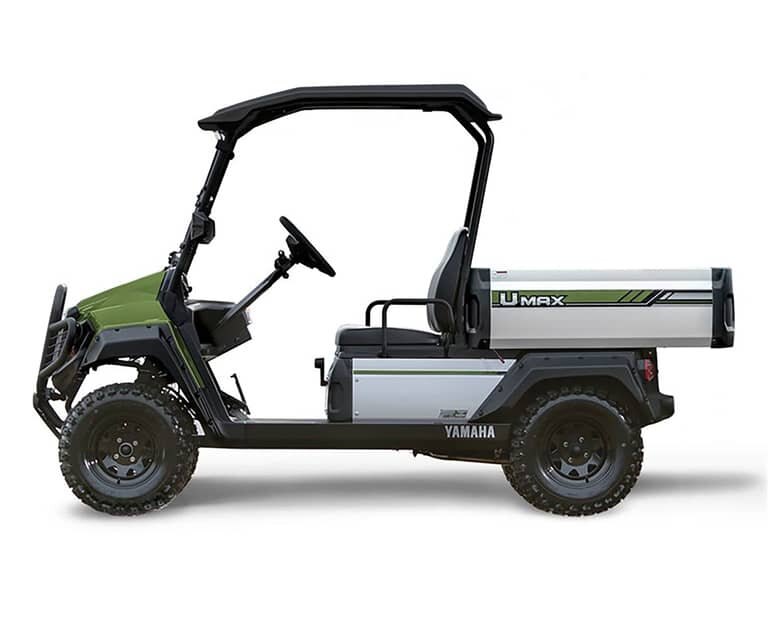

Yamaha UMAX Rally Evergreen Metallic

  • Yamaha UMAX Rally Evergreen Metallic
  • Yamaha UMAX Rally Evergreen Metallic
  • Yamaha UMAX Rally Evergreen Metallic
  • Yamaha UMAX Rally Evergreen Metallic
  • Yamaha UMAX Rally Evergreen Metallic
  • Yamaha UMAX Rally Evergreen Metallic
  • Yamaha UMAX Rally Evergreen Metallic
  • Yamaha UMAX Rally Evergreen Metallic
  • Yamaha UMAX Rally Evergreen Metallic

CURRENT PROMOTIONS

Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Haul it all with the UMAX Rally combining premium power and performance to handle daily tasks with ease. This work-ready PTV features a dump bed, front brush guard, capable 23” tires and a receiver hitch with plenty of towing power.
Specifications
Model
Rally
Category Name
Personal Transportation Vehicles
Year
2025
Sale Type
New
Manufacturer
Yamaha
Color
Evergreen Metallic
engine
ENGINE Yamaha-built 402 cc, Low Emission Single Cylinder 60° Incline OHV
OIL CAPACITY 1.1 L (1.16 U.S. quart, 1100 cc), Yamalube 10W-30
AIR CLEANER Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge
COOLING SYSTEM Forced Air
FUEL SYSTEM Electronic fuel injection
STARTING SYSTEM Starter generator with pedal start system
FUEL TANK CAPACITY 20 L (5.2 US Gal)
chassis
FRAME HybriCore™ Chassis features a robotic welded automotive ladder-style steel frame.
BODY Custom-formulated thermoplastic olefin painted with a two-part top coat of high-luster automotive-grade polyurethane
STEERING Self-compensating double reduction helical rack-and-pinion
FRONT SUSPENSION Tru-Trak II™ fully independent automotive-style strut suspension
REAR SUSPENSION Unit swing arm with dual rate coil springs over hydraulic shock absorbers
BRAKES Self-adjusting mechanical, front and rear wheel drum brakes
highlights

Yamaha UMAX Rally Evergreen MetallicRear Facing Folding Seats

Bring everyone along with premium rear facing bucket seats or tackle your to-do list with 200 lb of added storage capacity when the seats are folded down.

Yamaha UMAX Rally Evergreen MetallicRear Storage Basket

Added storage between the front and rear seats to carry tools, equipment, groceries or whatever else you need to take along.

Yamaha UMAX Rally Evergreen MetallicAutomotive-Style Dash

A dash designed for today’s professional, complete with cup holders, and fuel/battery gauge.

Yamaha UMAX Rally Evergreen MetallicSide-fill gas tank

A convenient side-fill gas tank makes for a quick, efficient fill up.

Yamaha UMAX Rally Evergreen MetallicUnder-hood storage compartment

Sizable storage area designed for convenience.
critical data
Length 3115 mm (122.6 ")
Width 1360 mm (53.5")
Height No sun top: 1288 mm (50.7") // With sun top: 188 mm (74.0")
Wheelbase 1965 mm (77.4")
Turning radius 4000 mm (4.0 m)
Ground Clearance 150 mm (5.9" )
Fuel Capacity 20 L (5.2 US Gal)
Weight Curb Weight (with Sun Top, Battery, Oil, Gasoline) 501 kg (1105 lb)
Bed Capacity 680.38 kg (1,500 lb)
Towing Capacity 680.38 kg (1,500 lb)
Warranty
Colour(s) GLACIER / CORAL RED METALLIC / EVERGREEN METALLIC
features and benefits

KEY FEATURES

  • 402 cc, low-emission single cylinder 60° incline OHV
  • Independent front suspension with cradle-smooth rear suspension
  • Convertible, fold-down rear facing bucket seats adds 2 extra seats or 200 lbs of added storage capacity.
  • Rear storage basket between front and rear seats
  • Clear polycarbonate fold-down windshield
  • Under hood storage compartment
  • Capable 23” tires
  • Front brush guard and fender flares

ENGINE

  • ENGINE TYPE.
    • Yamaha-built 402 cc, Low Emission Single Cylinder 60° Incline OHV
  • OIL CAPACITY.
    • 1.1 L, 1100 cc (1.16 U.S. quart), Yamalube 10W-30
  • AIR CLEANER.
    • Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge
  • COOLING SYSTEM.
    • Forced air
  • FUEL SYSTEM.
    • Electronic fuel injection
  • STARTING SYSTEM.
    • Starter generator with pedal start system
  • FUEL TANK CAPACITY.
    • 20 Litres (5.2 US Gal)

Chassis

  • FRAME.
    • HybriCore™ Chassis features a robotic welded automotive ladder-style steel frame
  • BODY.
    • Custom-formulated thermoplastic olefin painted with a two-part top coat of high-luster automotive-grade
      polyurethane
  • STEERING.
    • Self-compensating double reduction helical rack-and-pinion
  • FRONT SUSPENSION.
    • Tru-Trak II™ fully independent automotive-style
  • REAR SUSPENSION.
    • Unit swing arm with dual rate coil springs over hydraulic shock absorbers
  • BRAKES.
    • Mechanical, 4-wheel drum
